MT830 2D Mini Wireless Barcode Scanner

MT830

Snappy 1D & 2D Data Capture

MT830, on an average of 1/10 seconds, scans all 1D barcodes and major 2D barcode including PDF417, QR Code, Micro QR Code, Data Matrix and Aztec. MT830 2D wireless barcode also provides great motion tolerance at 28 cm/sec which benefits users who are always on the move.

wireless 2d barcode scanner

Mobile-Friendly Scanning

MT830, with enhanced optical design and latest decoding algorithm, virtually scans all 1D barcodes and major 2D barcodes on any surface, either paper-based label or mobile phone display. With MT830 adopted as barcode scanning device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments.

wireless 2D barcode scanner for retail POS

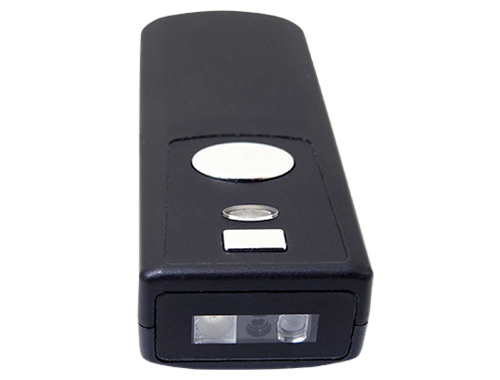

bluetooth barcode scanner

Ambient Light Immunity

MT830 2D Mini Scanner automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. As a result, MT830 2D wireless barcode scanner is ideal for both indoors and outdoors scanning applications which require more immunity for ambient light.

Specifications
MT830 2D Mini Barcode Scanner

Optical & Performance

Light Source	3000K CCT white LED 625nm visible red LED dot aimer
Sensor	Array Image Sensor
Scan Rate	60 Frames/Sec
Resolution	4mil/ 0.1mm (Code 39) 8mil/ 0.2mm (QR Code)
Scan Angle	Horizontal 42° Vertical 27°
Pitch Angle	±60°
Skew Angle	±30°
Roll Angle	360°
Print Contrast	30%
Width of Field	160mm (13Mil Code39)
Memory	2MB (20,000 barcodes)
Typical D.O.F* (@ 800 Lux)	Code 39 4 Mil : 63 ~ 144 mm 5 Mil : 61 ~ 173 mm 10 Mil : 26 ~ 303 mm 15 Mil : 35 ~ 404 mm UPC/EAN 13 Mil: 38 ~ 319 mm QR Code 10 Mil: 49 ~ 190 mm PDF417 6.67 Mil : 61 ~ 138 mm Data Matrix 10 Mil : 67 ~ 152 mm

Physical Characteristics

Dimension	W27.5 x L68.4 x H16.2 mm
Weight	29.5g
Color	Black / White
Material	PC+ABS
Cable	Micro(M) to USB A(M) Cable, 1.5M
Trigger	Scan Button, Function Button
Indicator	Buzzer, LED

Power

Operation Voltage	3.7 VDC ± 5%
Working Current	< 330mA
Standby Current	< 190mA
Battery	3.7V, 400mAh, Li-Polymer Battery
Number of Scan (per full charge)	4,000 scans (1 scan/ 5 secs, Bluetooth connected)

Connectivity

Radio	Bluetooth® 2.1 + EDR (Class2)
Range (Distance)	33 ft/ 10M (line of sight)
Interface/ Profile	BT HID BT SPP USB HID USB VCP Memory

User Environment

Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Humidity	0% ~ 95%RH (Non-condensing)
Drop Durability	1.5M
Ambient Light	100,000 Lux (Sunlight)
1D Symbologies	UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code32, Code 93, Code 128, Code 39, Interleaved 2 of 5, MSI Plessey Code, EAN/GS1-128, GS1 Databar
2D Symbologies	QR Code, Micro QR Code, Data Matrix, PDF 417, Aztec

Regulatory

ESD	Functional after 4KV contact, 8KV Air discharge
EMC/RF	FCC Part 15B Class B, Part 15C, CE EN55022/24/32, EN301489-1-17, EN300328 V2.1.1
Safety Approval	EN/IEC60825-1 (Class 1), FDA, EN/IEC60950-1
Environmental	WEEE, RoHS 2.0
Medical Compliance (MT830M)	ISO 22196 (JIS Z 2801) ISO 11737-1/2

Out Of Box

Cable	Micro(M) to USB A(M) Cable, 1.5M, Black (P/N: 7005-9892A50, QTY: 1)
Hand Strap	MT830: Large Hand Strap, 0.53M, Yellow (P/N: 8001-1004X00, QTY: 1) MT830M: Large Hand Strap, 0.53M, Green (P/N: 8001-1003X00, QTY: 1)
Silicone Cover	MT830: Silicone Cover, Waterproof, Yellow (P/N: 3020-1006X00, QTY: 1) MT830M: Silicone Cover, Anti-microbial, Transparent (P/N: 3020-1011X00, QTY: 1)

Patents

Taiwan	M 395218
China	ZL 201020287072.6
United States	US 8,220,712 B2
